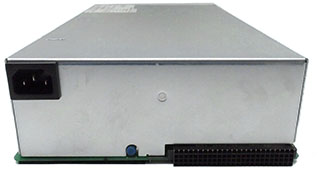

Definity 650A AC Power Supply

The Definity CMC 650A AC Power Supply features: Global power factor-corrected AC/DC converter providing multiple DC outputs and AC ring outputs; Auto-ranging and accepts 85- 264 VAC, 47-63 Hz AC input; 330 Watts total output.

The 650A provides multiple DC output as follows:
• +5.1 VDC, 28A
• -5.1 VDC, 1.0A
• -48 VDC, 4.5A
• +8 to +14 VDC, 1.6A (fan speed control)
• -150?-115 VDC, 200 mA (neon bus)

The 650A provides 3 switch-selectable ring outputs:
• 85 VAC RMS, 80 mA, 20 Hz, centered about -48 VDC, 180 mA
• 72 VAC RMS, 8 to 80 mA, 25 Hz, centered about -48 VDC, 180mA
• Two 28 VAC RMS (56 Veff), 220 mA, 50 Hz biased about -48 VDC and 0 VDC, 70 mA balance
